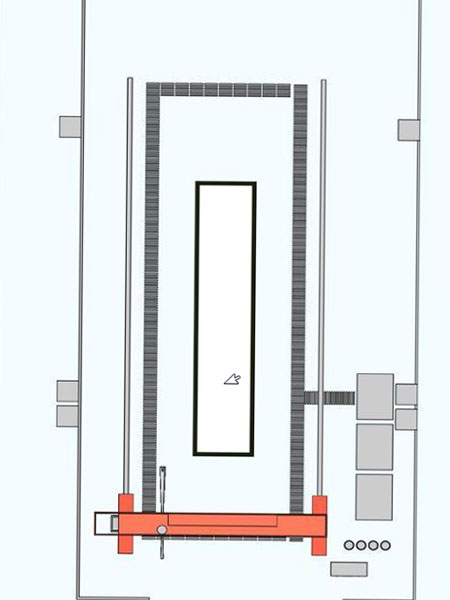

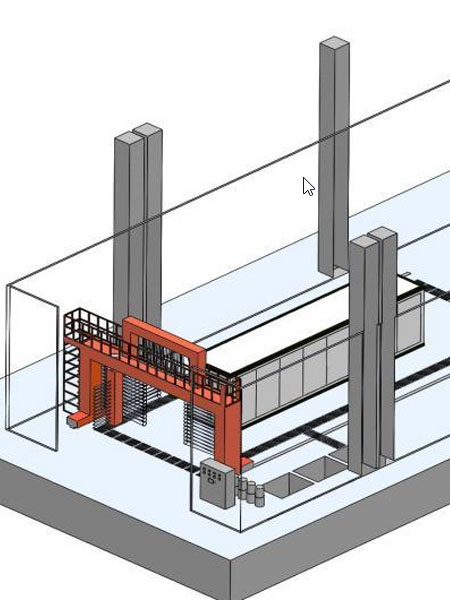

20-foot energy storage container IP5 rain test
1. Product: Overall dimensions: 20-foot standard container (6058×2438×2896mm).

    Product 2: Overall dimensions: 30-foot standard container (9600×2000×2700mm)
2. IP5 sprinklers: 6 on each side, 6 on the top, totaling 18. IP6 sprinklers: 2 on each side, 2 on the top.

3. Spray structure speed: The gantry moves at an adjustable speed of 30mm/S.
4. Sprayer head up-down swing angle: ±20° adjustable.

5. Spraying duration: Within 30 minutes for each cabinet.

6. Water circulation system: water is recycled and used, with three filtration pools
