Energy storage industrial and commercial cabinet IP56 rain test device

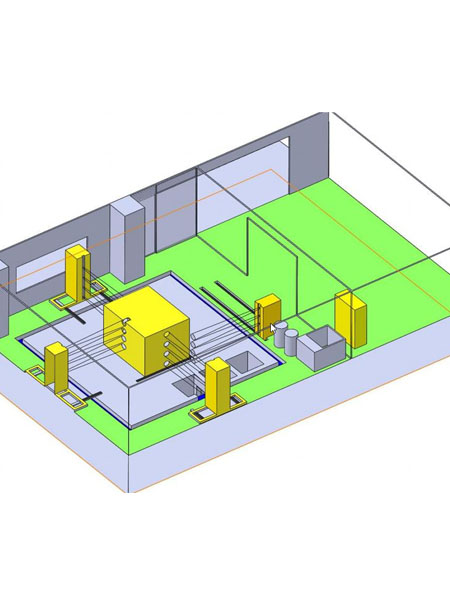

1. Product: Outer contour dimensions of DTS cabinet (1200*900*2100).

    Product 2: Overall dimensions: 30-foot standard container (1600×1500×2800mm)
2. There are 16 IP5 sprinklers, with 4 on each side and 4 at the front and back. There are 4 IP6 sprinklers, with 1 on each side.

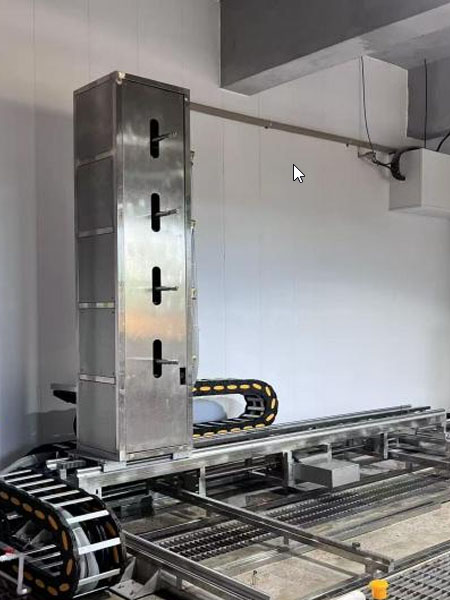

3. Spray structure speed: The movement speed of the imported gantry is adjustable at 30mm/s.
4. Up-down swing angle of the spray head on the four-sided mechanism: ±20° adjustable.

5. Spraying duration: within 5 minutes for each cabinet.

6. Water circulation system: Water is recycled and used, with three filtered water pools
